Comway A33 Fusion Splicer | 2-in-1 Fiber Optic Fusion Splicing Machine Kit, Portable Kit with Battery & Cleaver
Comway A33 is a fusion splicer and a fiber endface melter, all in one. It is a powerful and stable tool with high precision PAS alignment system. The fusion splicer is equipped with a high-performance heater that provides a faster and more power-saving machining process, and a stable and durable ceramic fiber presser.
The large capacity battery and resistance to the most unfavorable environment conditions (high temperature, humidity, altitude, and wind velocity) allows using Comway A33 in the field. The high-quality tool’s screen ensures clear viewing of results even under bright sunlight.
AED 6,500.00
1 in stock
share:
Description
Key Features

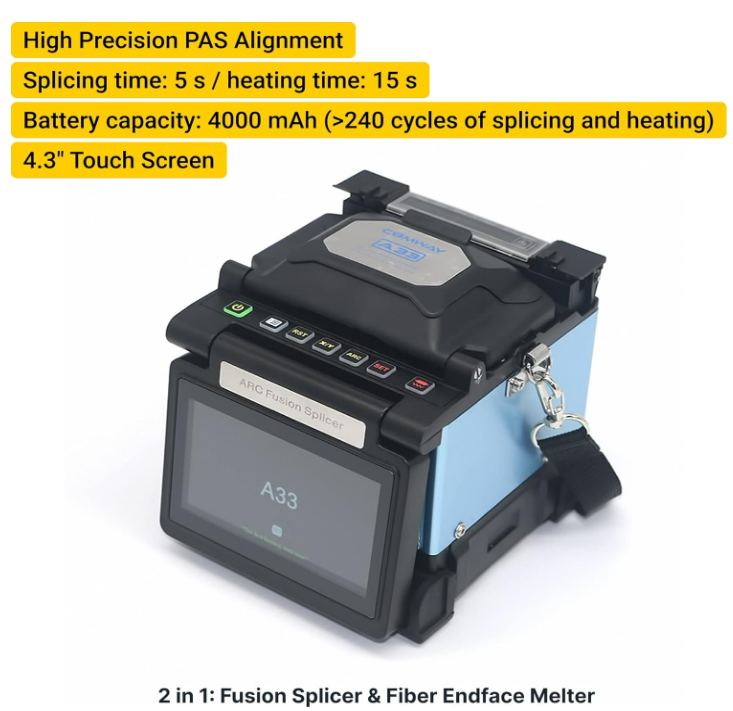

- Ultra-Fast Performance – Splicing time: ~5–7 sec, Heating time: 15–28 sec
- High Precision Alignment – PAS / Active Cladding Alignment for low splice loss
- Long Battery Life – Up to 240+ splice & heat cycles per charge

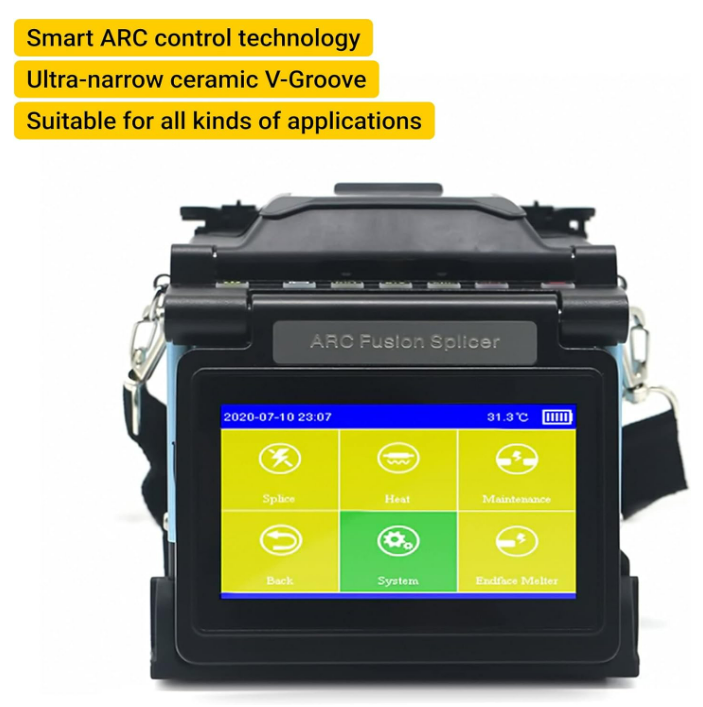

- 4.3–5” Color Touchscreen – Clear and intuitive interface
- 2-in-1 Functionality – Fusion splicer + fiber endface melter
- Rugged Design –Dustproof, waterproof, shockproof and windproof
- High-Speed USB Port – Easy data transfer and maintenance
- Electrode Life – Up to 5000 arc discharges

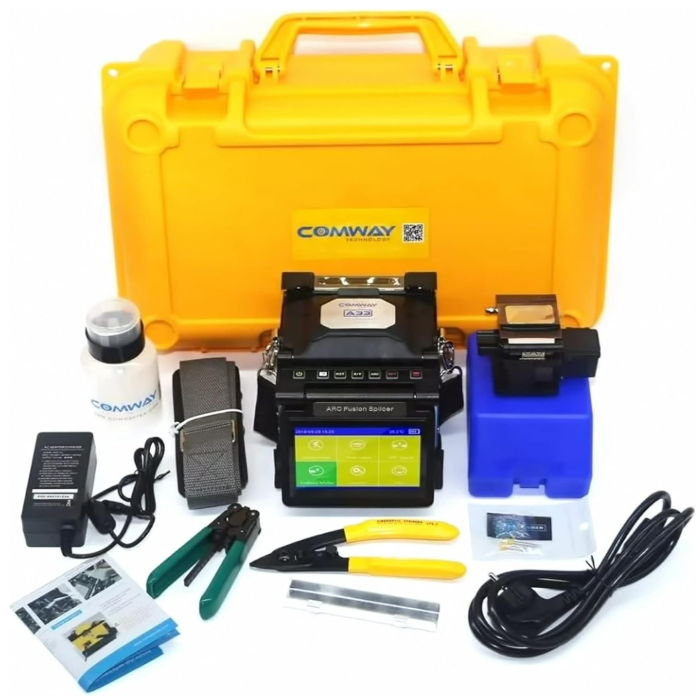

- Complete Kit Included – Cleaver, strippers, battery, charger, carrying case

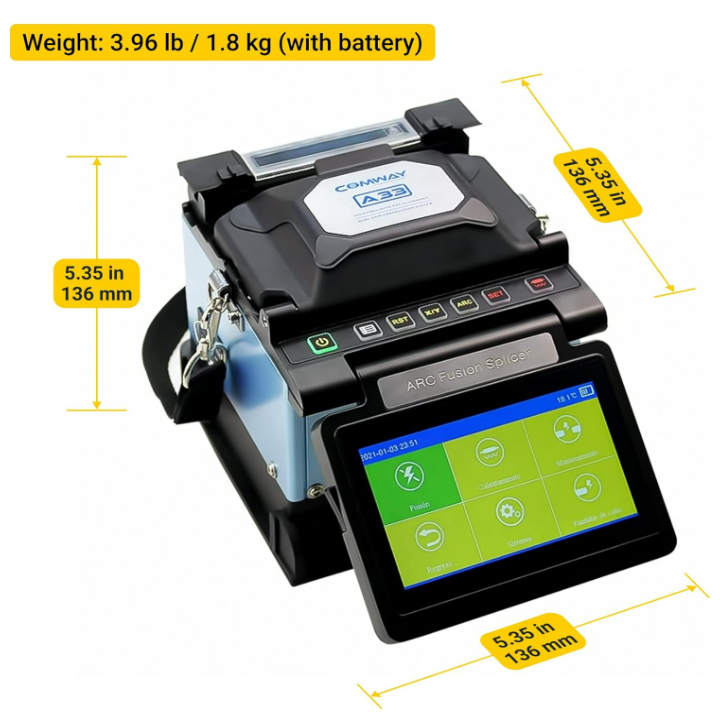

Dimensions & Weight
- Dimensions: 136 × 141 × 136 mm
- Weight:
- 1.5 kg (without battery)
- 1.8 kg (with battery)

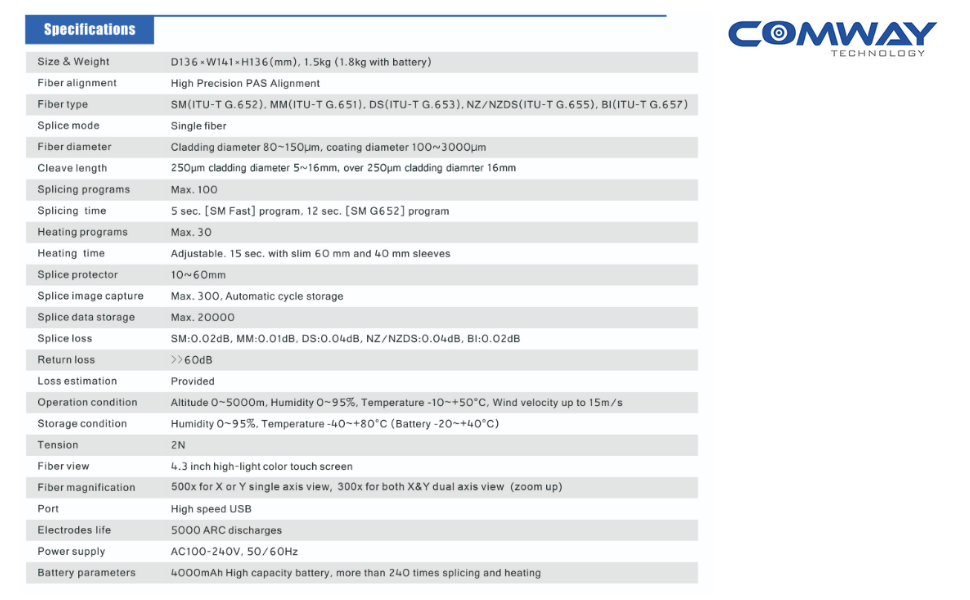

Technical Specifications
- Alignment Method: PAS (Profile Alignment System)
- Fiber Types Supported:
- SM (G.652), MM (G.651), DS (G.653), NZDS (G.655), BIF (G.657)
- Splice Mode: Single fiber
- Fiber Diameter:
- Cladding: 80–150 µm
- Coating: up to 1000–3000 µm
- Cleave Length: 8–16 mm
- Splicing Programs: Up to 100 modes
- Battery Capacity: ~4000 mAh
- Power Supply: AC 100–240V, 50/60 Hz
| Fiber Alignment | High Precision PAS (Profile Alignment System) Alignment |
| Fiber Type | SM (ITU-T G.652) MM (ITU-T G.651) DS (ITU-T G.653) NZ/NZDS (ITU-T G.655) BI (ITU-T G.657) |
| Splice Mode | Single Fiber |
| Fiber Diameter | Cladding Diameter: 80-150 μm Coating: 100-3000 μm |
| Cleave Length | Cladding Diameter 250 μm: 8~16 mm Cladding Diameter over 250 μm: 16 mm |
| Splicing Programs | 100 max. |
| Splicing Time | 5 s (SM Fast mode); 12 s (SM G652 mode) |
| Heating Programs | 30 max. |
| Heating Time | Adjustable, 15 s (with slim 40 mm and 60 mm sleeves) |
| Splice Protector | 10~60 mm |
| Splice Image Capture | max. 300 |
| Splice Data Storage | max. 20000 |
| Splice Loss | SM: 0.02 dB; MM: 0.01 dB; DS: 0.04 dB; NZ/NZDS: 0.04 dB; BI: 0.02 dB |
| Return Loss | ≥60 dB |
| Loss Estimation | Provided |
| Operation Conditions | Temperature: -10~+50 °C Humidity: 0-95% Altitude: 0-5000 m Wind Velocity: up to 15 m/s |
| Storage Conditions | Humidity: 0-95% Temperature: -40~+80 °C (Battery: -20~+40 °C) |
| Tension Test | 2N |
| Display | 4.3 inch high-light color touch screen |
| Fiber Magnification | 300x for X or Y single axis view 500x for both X&Y dual axis view |
| Port | High-speed USB |
| Electrode Life | 5000 ARC discharges |
| Power | AC adapter (AC 100-240 V); 50/60 Hz |
| Battery | 4000 mAh capacity, more than 240 times splicing and heating |
| Dimensions | 136 mm × 141 mm × 136 mm |
| Weight | 1.5 kg (1.8 kg with battery) |
