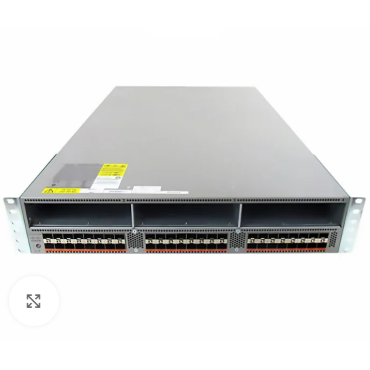

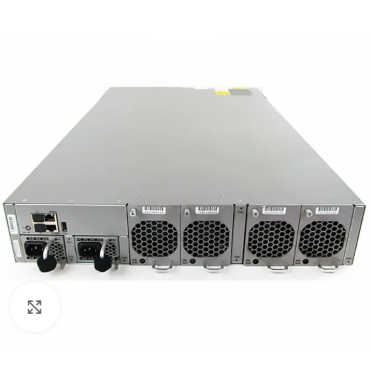

With great scalability and versatility, the Cisco N5K-C5596UP-FA Nexus Network Switch is a high-performance, modular switch intended for data center scenarios. It is extremely adaptable to various network requirements thanks to its 48 universal ports, which handle a wide range of interfaces, including Ethernet, Fibre Channel, and Fibre Channel over Ethernet (FCoE). It also has sixteen fabric ports with high-speed inter-switch communication built in, guaranteeing effective and smooth data movement throughout the network fabric.
The N5K-C5596UP-FA offers cutting-edge technologies like virtual port channels (vPC), quality of service (QoS), and extensive security measures. Reliable, high-speed networking is crucial for contemporary data centers. Because of its modular design, expanding network demands may be easily accommodated without requiring a total infrastructure rebuild. Overall, this switch combines robust performance with flexibility and scalability, making it an ideal choice for enterprises looking to enhance their data center operations.
2.950,00 D
Out of stock
share:
| Feature | Specification |
|---|---|
| Model | Cisco N5K-C5596UP-FA |
| Form Factor | Rack-mountable (2RU) |
| Total Ports | 48 Universal Ports + 16 Fabric Ports |
| Port Types | 1/10 Gigabit Ethernet, Fibre Channel |
| Fabric Extender Ports | 16 |
| Throughput | Up to 1.92 Tbps (Full-duplex) |
| Latency | Less than 2 microseconds |
| Power Supplies | Dual, Hot-swappable, Redundant |
| Cooling | Front-to-back airflow with redundant fans |
| Switching Capacity | 1.92 Tbps |
| MAC Addresses | 128,000 |
| VLANs | 4096 |
| Memory | 8 GB RAM, 2 GB Bootflash |
| Forwarding Rate | 1440 Mpps |
| MTBF | 300,000 hours |
| Dimensions (H x W x D) | 3.5 x 17.3 x 22.5 inches (8.89 x 43.94 x 57.15 cm) |
| Weight | 42 lbs (19.05 kg) |
| Software | Cisco NX-OS |
| Environment | Operating Temperature: 32°F to 104°F (0°C to 40°C) |
| Relative Humidity | 5% to 95% (non-condensing) |
| Certifications | RoHS-6 compliant, UL 60950-1, CAN/CSA-C22.2 No. 60950-1-03, EN 60950-1, IEC 60950-1, AS/NZS 60950-1, GB4943 |
