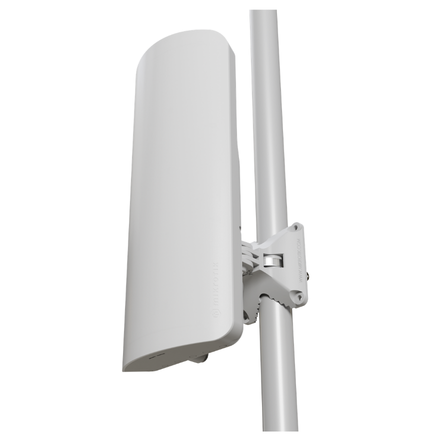

Mikrotik mANTBox AX 15s [L22UGS-5HaxD2HaxD-15S] Wi-Fi 6 | Dual-band Sector Antenna base Station

Description

Key Features

Wireless & Performance

• Dual-band Wi-Fi 6 (802.11ax) — supports both 2.4 GHz and 5 GHz bands with modern Wi-Fi 6 features like OFDMA and MU-MIMO for better multi-client performance.

• 2×2 MIMO with Sector Antennas — built-in 12 dBi antennas for 2.4 GHz and 15 dBi for 5 GHz provide wide coverage and long-range capability.

• High data rates — up to ~574 Mbps on 2.4 GHz and ~2400 Mbps on 5 GHz (theoretical maximums).

• Supports up to 128 clients per interface — from the official datasheet.

Connectivity & Interfaces

• 1× Gigabit Ethernet port with Passive PoE-in support — simplifies outdoor installations.

• 1× SFP port (supports modules up to 2.5 Gbps) — for fiber uplinks or high-speed backhaul.

• 1× USB Type-A port — allows for accessories or power reset functions.

Hardware & OS

• Dual-core Qualcomm IPQ-5010 CPU @ 800 MHz, 256 MB RAM, 128 MB NAND — enough for demanding outdoor networking and RouterOS configuration.

• RouterOS v7 with Level 4 license — comprehensive networking features (routing, firewall, wireless management, CAPsMAN, VLANs, etc.).

• Passive cooling (fanless) — improves reliability in outdoor conditions.

Outdoor-Ready Design

• Weather resistant (IP55) enclosure — tough enough for outdoor installation in varying climates.

• Operating temperature range: −40 °C to +70 °C.

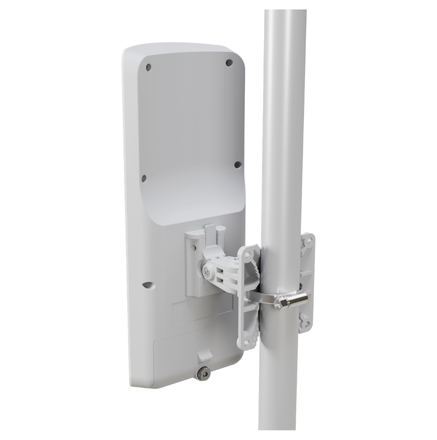

• Mounting hardware included — quick MOUNT pro bracket with ~140° adjustability for precise alignment.

Security & Wi-Fi Enhancements

• WPA3 + management frame protection (MFP) — modern wireless security and resilience against attacks.

• Target Wake Time (TWT) — reduces power usage for connected clients.

• Seamless roaming support — smoother transitions when clients move between access points.

Package Contents

Includes Gigabit PoE injector, 24 V/1.2 A power adapter, hose clamp, fastening set, and quick MOUNT pro wall/pole mount.

Typical Use Cases

✅ Outdoor wireless coverage for parks, campuses, resorts
✅ ISP point-to-multipoint base stations
✅ Community or municipal Wi-Fi networks
✅ Backhaul links with fiber or Gigabit uplinks
✅ Environments where integrated high-gain sector antennas simplify deployment
